Brand:
SolarpumpsysPayment:
FOBProduct Origin:
Hefei Anhui ChinaColor:
WhiteShipping Port:
Nanjing, Ningbo, Shanghai，Shenzhen，GuangzhouLead Time：
7 days

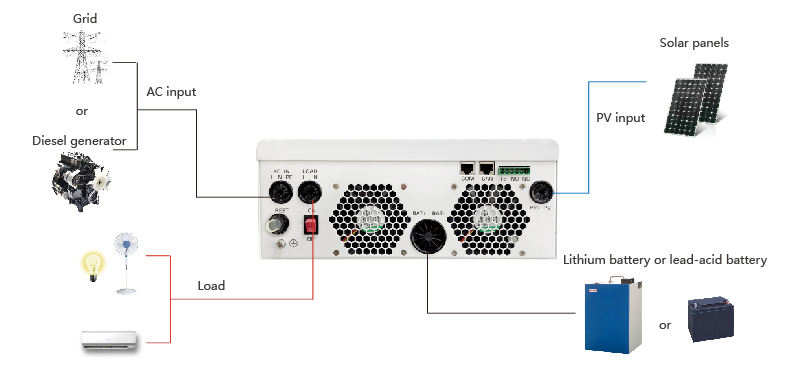

2.AC input source is compatible with power grid and diesel engine, intelligent control;
3.Advanced energy management system, which can adapt to different application scenarios;
4.There are power saving mode (ECO) and backup power supply (UPS) mode;
5.The switching time between bypass and inverter is less than 10ms, so as to realize fast switching;
6.Wide range of photovoltaic input voltage;
7.Built in MPPT charging controller, MPPT efficiency is more than 99%;
8.The maximum photovoltaic charging current is 80A, and the utilization rate of photovoltaic is higher;
9.The charging current can be set to protect the battery and extend the battery service life;
10.The battery is equipped in various ways, and colloidal or lithium batteries are optional;
11.The intelligent speed regulation of the cooling fan in the product can extend the service life of the fan.
|
Model |
JNF5KHF48V-V1 |
|
PV input |
|
|
Max. input DC voltage |
480Vdc |
|
Recommended input power |
7000W |
|
MPPT working voltage range |
150~450Vdc |
|
Battery |
|
|
Rated voltage |
48Vdc |
|
Max. charging current |
80A |
|
Max. charging efficiency |
≥97% |
|
Battery |
Gel/lithium |
|
AC input and bypass output |
|
|
Voltage and frequency |
230Vac±20%,50/60Hz (±3%) |
|
Max. charging current |
60A |
|
Switching time |
≤10ms |
|
Inverter output |
|
|
Rated output capacity |
5000VA |
|
Peak output capacity |
15000VA |
|
Rated output power (linear load) |
5000W |
|
Output voltage |
220Vac OR 230Vac |
|
Rated frequency |
50/60Hz (±3%) |
|
Standby loss |
≤10W |
|
Max.efficiency |
93% |
|
Wave form |
sine wave |
|
Total harmonic distortion |
<3% |
|
Overload |
5s@≥130% load;10s@ 105%～130% load |
|
Machine parameters |
|
|
Size(W/H/D) |
315mm*430mm*120mm |
|
Weight |
10Kg |
|
Other parameters |
|
|
Protection level |
IP21 |
|
Noise |
<60dB |
|
Cooling method |
Forced cooling |
|
Working temperature |
-25～+60℃ |
|
Storage temperature |
-25～+60℃ |
|
Display mode |
LCD+LED |
|
Communication interface |
RS485 |
|
Altitude |
2000m(>2000m derating operate) |

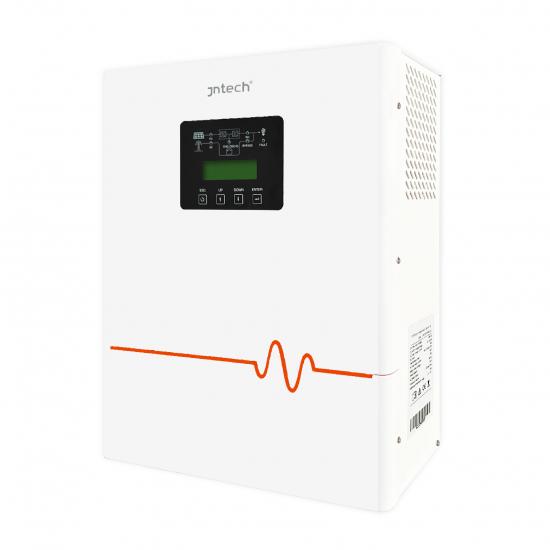

All in one household solar energy storage is a multifunctional intelligent energystorage inverter cabinet integrating inverter, AC charger, photovoltaic charge controllerand AC bypass. It has optional AC sources, an intelligent management system for ACchargers and solar charge controllers, and an energy management system for AC output,which guarantees customers' normal electricity consumption to the greatest extent andreduces the cost of customers' electricity consumption.
All in one household solar energy storage is a multifunctional intelligent energystorage inverter cabinet integrating inverter, AC charger, photovoltaic charge controllerand AC bypass. It has optional AC sources, an intelligent management system for ACchargers and solar charge controllers, and an energy management system for AC output,which guarantees customers' normal electricity consumption to the greatest extent andreduces the cost of customers' electricity consumption.
All in one household solar energy storage is a multifunctional intelligent energystorage inverter cabinet integrating inverter, AC charger, photovoltaic charge controllerand AC bypass. It has optional AC sources, an intelligent management system for ACchargers and solar charge controllers, and an energy management system for AC output,which guarantees customers' normal electricity consumption to the greatest extent andreduces the cost of customers' electricity consumption.
All in one household solar energy storage is a multifunctional intelligent energystorage inverter cabinet integrating inverter, AC charger, photovoltaic charge controllerand AC bypass. It has optional AC sources, an intelligent management system for ACchargers and solar charge controllers, and an energy management system for AC output,which guarantees customers' normal electricity consumption to the greatest extent andreduces the cost of customers' electricity consumption.
All in one household solar energy storage is a multifunctional intelligent energystorage inverter cabinet integrating inverter, AC charger, photovoltaic charge controllerand AC bypass. It has optional AC sources, an intelligent management system for ACchargers and solar charge controllers, and an energy management system for AC output,which guarantees customers' normal electricity consumption to the greatest extent andreduces the cost of customers' electricity consumption.
Solar off grid power system is composed of PV module, Solar Off grid inverter, and Battery pack.it converts DC power produced by solar panels to AC power to provide electric energy for applications. MPPT charge controller charge the solar electricity into batteries. When solar energy is not enough for loads, or at night, the battery pack will be discharge to replenish energy for loads.
Solar off grid power system is composed of PV module, Solar Off grid inverter, and Battery pack.it converts DC power produced by solar panels to AC power to provide electric energy for applications. MPPT charge controller charge the solar electricity into batteries. When solar energy is not enough for loads, or at night, the battery pack will be discharge to replenish energy for loads.
Solar off-grid energy storage inverter is integrated with a MPPT solar charge controller, a high frequency pure sine inverter and a UPS function module in one machine. This inverter can work with or without batteries. Solar off-grid energy storage inverter can be connected in parallel
