Brand:
SolarpumpsysItem NO.:
JNB048100-S-V1Product Origin:
Hefei Anhui ChinaShipping Port:
Nanjing, Ningbo, Shanghai，Shenzhen，Guangzhou

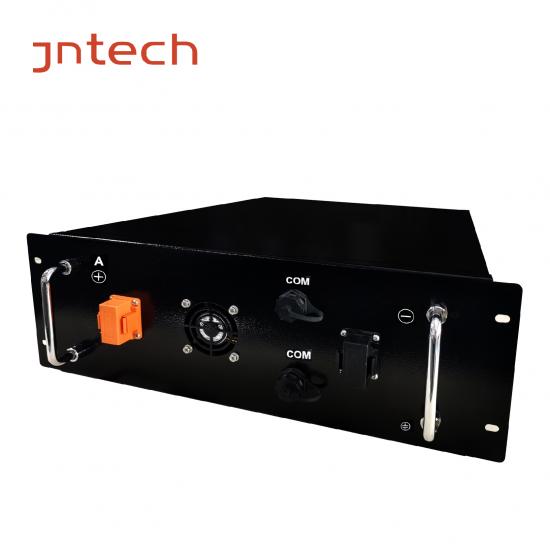

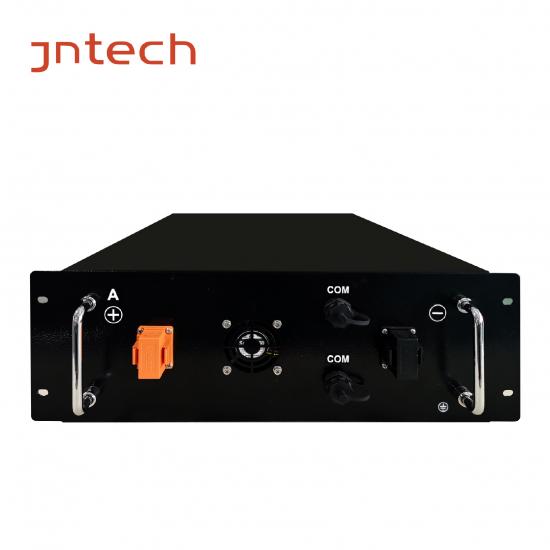

JNTECH energy storage battery combines lithium iron phosphate cells, BMS, and temperature monitoring. It offers a superior alternative to lead-acid batteries and can communicate with various photovoltaic energy storage PCS.

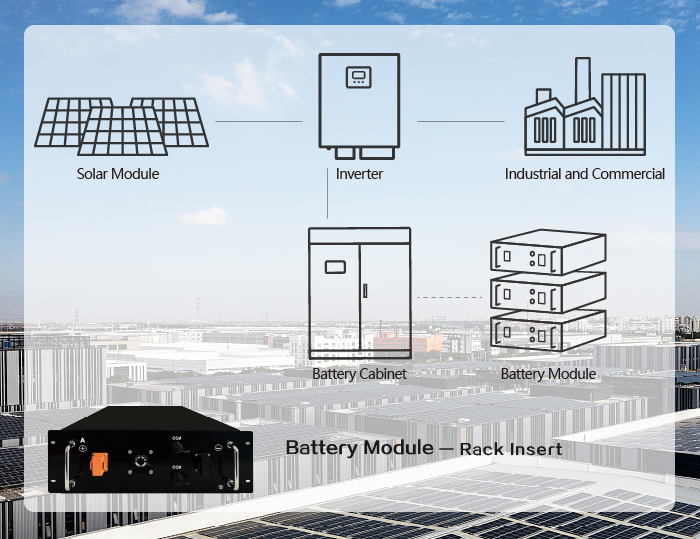

It is widely utilized in off-grid and grid-connected photovoltaic energy storage systems, and multiple units can be connected in series for residential, commercial, and industrial energy storage applications.
Features：
| Model |
JNB048100-S-V1
|
| Rated capacity |
100Ah
|
| Rated voltage |
51.2V
|
| Rated energy |
5.2kWh
|
| Battery type |
LiFePO4
|
| Max. continuous charge current |
100A (1C）
|
| Max. continuous discharge current |
100A (1C）
|
| Voltage range |
40V-60V
|
| Operating temperature | Charge 0~45℃，discharge -25~55℃ |
| storage temperature | -20~60℃ |
| Box size |
600mm*485mm*167mm
|
| Weight |
48kg
|
|
Cooling method
|
Forced cooling
|
| Protecition level | IP21 |
| Functional protection | Undervoltage, overvoltage, overcurrent, temperature, short circuit |
| Installation method | Rack Insert |
| Cycle life |
>4000 times（80%DOD）, >7000 times（70%DOD）
|
|
Interface
|
RS485/CAN
|
|
Elevation |
≤3000m |
JNTECH energy storage battery pack can replace the traditional lead-acid battery perfectly, and can exchange information with various types of solar energy storage PCS, widely used for off-grid, grid-tie and other solar energy storage systems; used for outdoor lighting, emergency or temporary electricity needed, field working, also for family standby power.
JNTECH energy storage battery pack can replace the traditional lead-acid battery perfectly, and can exchange information with various types of solar energy storage PCS, widely used for off-grid, grid-tie and other solar energy storage systems; used for outdoor lighting, emergency or temporary electricity needed, field working, also for family standby power.
This product consists of multiple battery modules and a high voltage box. The battery module is an energy storage battery that integrates lithium iron phosphate battery cells, BMS, and temperature detection.
JNTECH energy storage battery pack can replace the traditional lead-acid battery perfectly, and can exchange information with various types of solar energy storage PCS, widely used for off-grid, grid-tie and other solar energy storage systems; used for outdoor lighting, emergency or temporary electricity needed, field working, also for family standby power.
JNTECH energy storage battery pack can replace the traditional lead-acid battery perfectly, and can exchange information with various types of solar energy storage PCS, widely used for off-grid, grid-tie and other solar energy storage systems; used for outdoor lighting, emergency or temporary electricity needed, field working, also for family standby power.
JNTECH energy storage battery pack can replace the traditional lead-acid battery perfectly, and can exchange information with various types of solar energy storage PCS, widely used for off-grid, grid-tie and other solar energy storage systems; used for outdoor lighting, emergency or temporary electricity needed, field working, also for family standby power.
JNTECH energy storage battery pack can replace the traditional lead-acid battery perfectly, and can exchange information with various types of solar energy storage PCS, widely used for off-grid, grid-tie and other solar energy storage systems; used for outdoor lighting, emergency or temporary electricity needed, field working, also for family standby power.
JNTECH energy storage battery pack can replace the traditional lead-acid battery perfectly, and can exchange information with various types of solar energy storage PCS, widely used for off-grid, grid-tie and other solar energy storage systems; used for outdoor lighting, emergency or temporary electricity needed, field working, also for family standby power.
